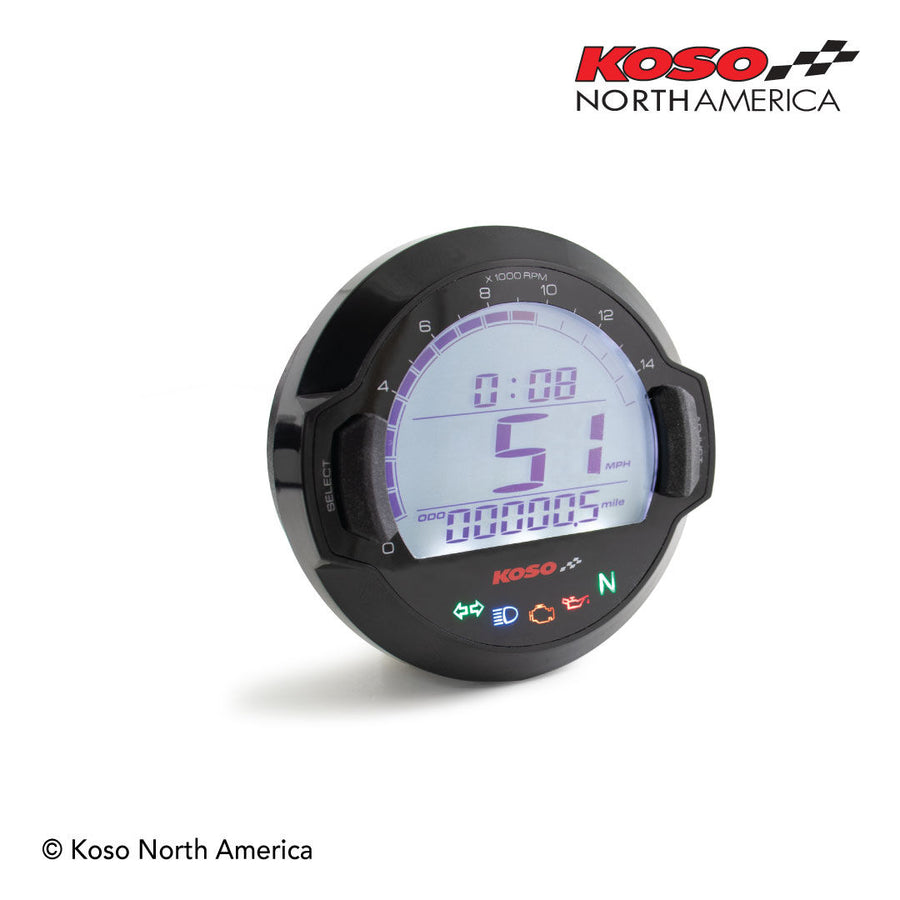

Koso DL-03SR GP STYLE MULTI-FUNCTIONS (BLACK)

Koso DL-03SR GP STYLE MULTI-FUNCTIONS (BLACK) by Koso.

The DL‑03SR GP Style multifunction meter features about all the functions you need to go on the street. The large digits, indicator lights and backlight make this instrument easy to read, even at night. The universal speed sensor and bracket allow to install this meter on about any applications. Compact, lightweight, easy to operate, this is our DL‑03SR GP Style multifunction meter. Specifications (R= Range U=Unit) Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h Odometer R: 0 ~ 99,999 miles (km) U: 1 mile (km) Tripmeter A/B R: 0 ~ 999.9 miles (km) U: 0.1 mile (km) Fuel / remaining distance R: 0 ~ 999.9 miles (km) U: 0.1 mile (km) Tire circumference R: 300 ~ 2,500 mm | U: 1 mm Sensor point: 1 ~ 60 Tachometer R: 0 ~ 15,000 RPM U: 1 level = 1,000 RPM Fuel level R: 4 levels Flashing fuel symbol when 1 level left Fuel resistance R: 100 Ω / 250 Ω / 510 Ω/ 1,200 Ω Clock R: 24 H format Digital volt meter R: DC 5 ~ 24 V Flashing warning light when DC 18 V. Volt meter R: 4 levels Flashing volt symbol when 1 level left Backlight brightness R: 1/5 (darkest) ~ 5/5 (brightest) Indicator lights Neutral / Check engine / Oil level / High beam / Turn signals / Effective temperature R:14 ~ 140 °F (‑10 ~ 60 °C) Effective voltage DC 12 V Sensor included Passive speed sensor : BF019J06 Instructions Download PDF
