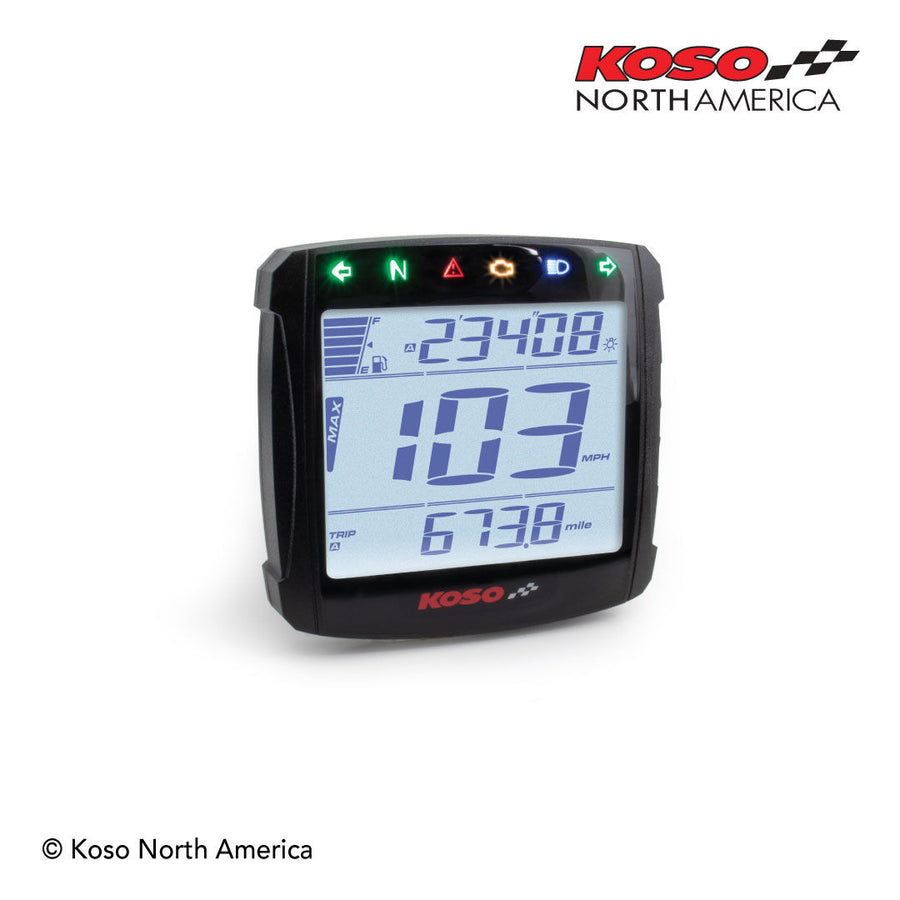

Koso XR-01S SPEEDOMETER WITH INDICATOR LIGHTS
Koso XR-01S SPEEDOMETER WITH INDICATOR LIGHTS by Koso.
Thinner and lighter than its previous version, the XR‑SA speedometer, our innovative XR‑01S speedometer most importantly features a larger, higher quality and easy to read LCD display. The indicator light functions are still there. New interesting functions were also added and they include a 2 hour meter readings, a maintenance hour meter for oil change, 2 tripmeter readings, and a useful clock. This meter is user‑friendly, easy to read during day or night, and is a great fit for any kind of motorcycle, scooter or other bike. Specifications (R= Range U=Unit) Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h (alternative) Odometer R: 0 ~ 99,999 miles (km) U: 1 mile (km) Tripmeter A/B R: 0 ~ 9, 999.9 miles (km) | U: 0.1 mile (km) Oil maintenance mileage R: 300 ~ 5,000 Miles (km) | U: 1 MPH(km) Hour meter R: 0 ~ 99,999 hours | U: 1 H Hour meter A/B R: 0 ~ 9,999 hours | U: 0.1 H Top speed record R: 0 ~ 225 MPH (0 ~ 360 km/h) Average speed record R: 0 ~ 225 MPH (0 ~ 360 km/h) Tire circumference R: 300 ~ 2,500 mm | U: 1 mm Sensitive point: 1 ~ 6 Volt meter R: DC 8 ~ 18 V Flashing light when DC 15.5 V Backlight brightness R: 1/5 (darkest) ~ 5/5 (brightess) Fuel level R: 6 levels Fuel resistance R: 100 Ω / 250 Ω / 510 Ω / USER Clock R: 24 H format Indicator lights Turn signals / Neutral / Warning / High beam / Check engine Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C) Effective voltage DC 12 V Sensor included Passive speed sensor : BF019J06 Instructions Download PDF
