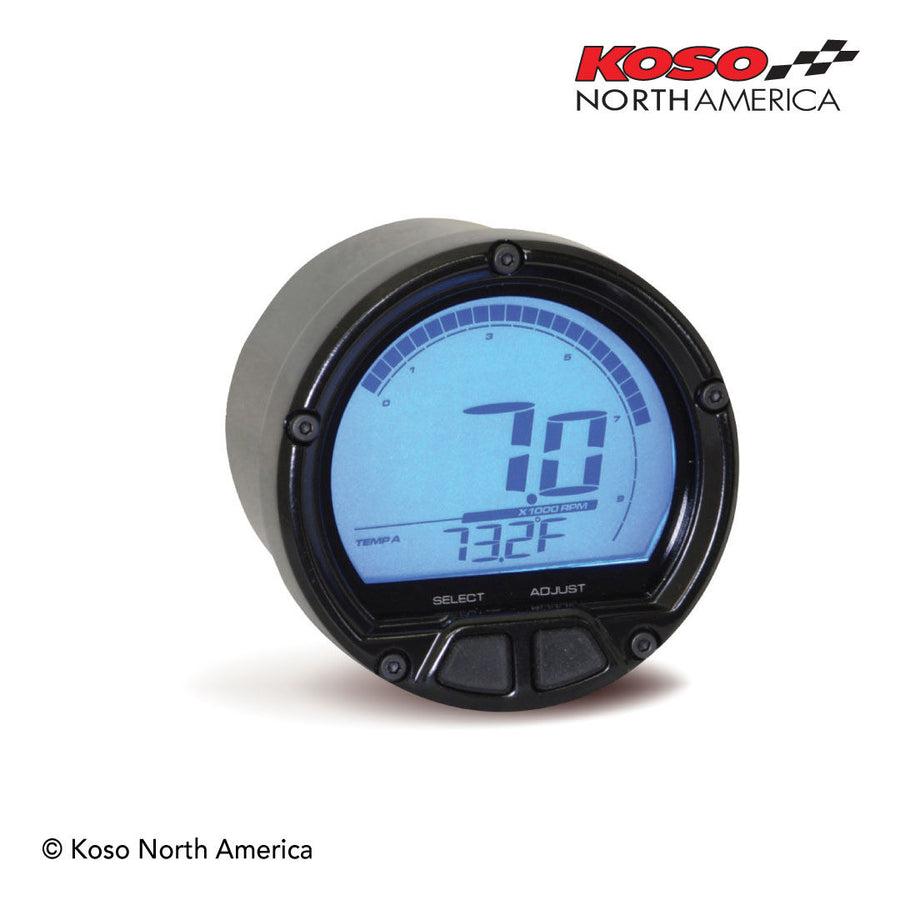

Koso DL-02R | Tachometer | for Harley-Davidson® - black

Koso DL-02R | Tachometer | for Harley-Davidson® - black by Koso.

The DL‑02R tachometer has been developed with the latest technology. Its unique casing allows the adjust buttons to be right in the front. This makes the DL‑02R a very convenient instrument to adjust. The big digits and blue backlight make the DL‑02R a very easy meter to read even at night. Specifications (R= Range U=Unit) Tachometer R: 0 ~ 20,000 RPM | U: 100 RPM Tachometer level R: 0 ~ 10,000 / 15,000 / 20,000 RPM U: 30 levels ■ 10, 000 RPM: 1 level = 333 RPM ■ 15, 000 RPM: 1 level = 500 RPM ■ 20, 000 RPM: 1 level = 666 RPM Stroke / piston setting 2 stroke: 1, 2, 3, 4 pistons 4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons Thermometer A/B R: 32 ~ 482 °F (0 ~ 250°C) U: 0.1°F or °C (alt) Clock R: 24 H format Effective temperature R:14 ~ 140 °F (‑10 ~ 60 °C) Effective voltage DC 12 V Sensor included Temp sensor : BF030000 1/8 (BSP) x 28 Effective temp. range -10 ~ 60ºC (14 ~ 140ºF) Meter standard JIS D 0203 S2 Meter size (DxH) D55 X 48.4 mm Instructions Download PDF
