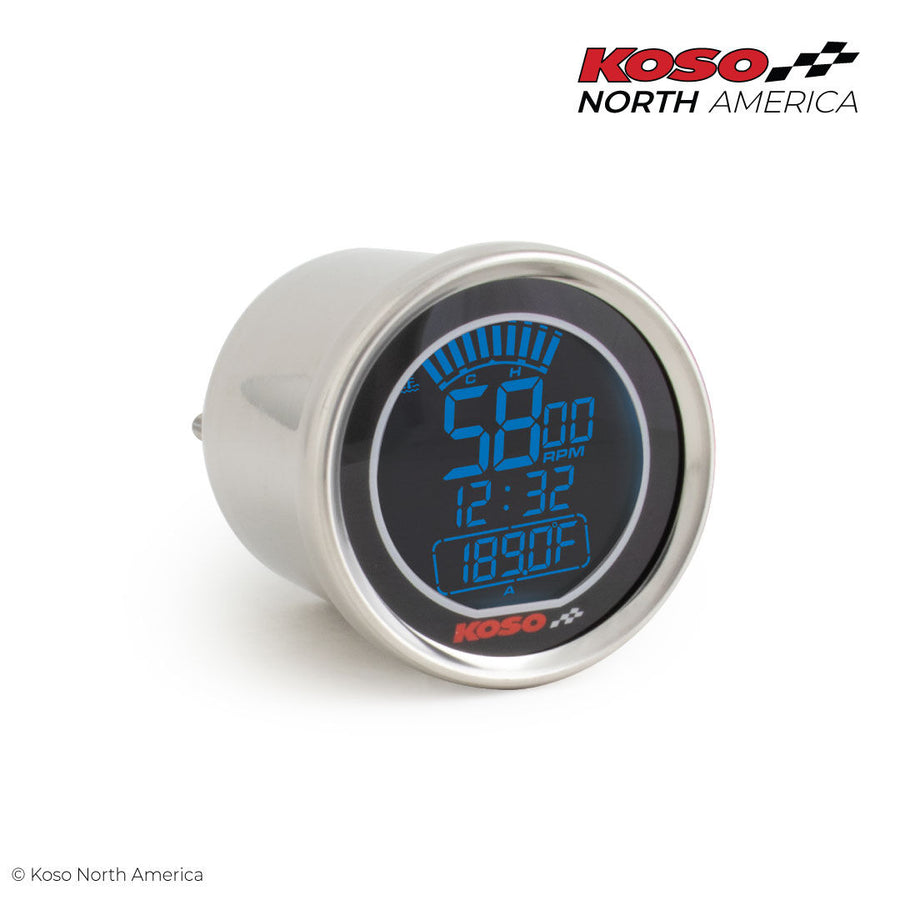

Koso DL STYLE | Universal Tachometer

Koso DL STYLE | Universal Tachometer by Koso.

The DL style meter serie is built using a reverse LCD screen that gives it a unique look as they become completely dark when turned off. Another great feature of this meter is its compatibility with the Koso chrome bullet casing. Specifications (R= Range U=Unit) Tachometer R: 0 ~ 20,000 RPM | U: 100 RPM Tachometer level R: 0 ~ 10,000 / 15,000 / 20,000 RPM (alt) U: 30 levels Stroke / piston setting 2 stroke: 1, 2, 3, 4 pistons 4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons Temperature level R: 68 ~ 248 °F (0 ~ 120°C) U: 1 level= 50°F (10 °C) Clock 24 H format Effective temperature R: 14 ~ 140 °F (‑10 ~ 60 °C) Effective voltage DC 12 V Sensor included Passive speed sensor : BF019005 Instructions Download PDF
