Koso TNT-05 D80 TACHO + SPEEDOMETER HARLEY-DAVIDSON
Koso TNT-05 D80 TACHO + SPEEDOMETER HARLEY-DAVIDSON by Koso.

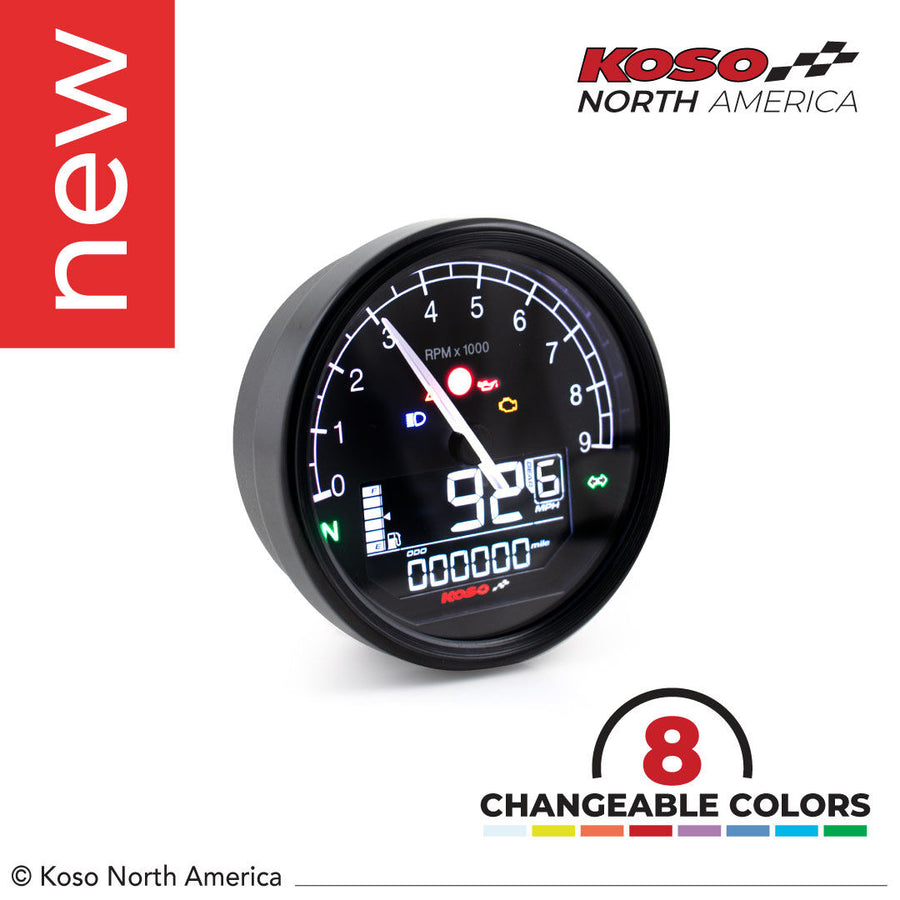

Koso decided to release a bigger version of the TNT-05 that combines a tachometer and speed option. This version for Harley-Davidson® bikes has 8 changeable LCD backlight colors and indicator lights that will give you all the data you need with style even in the darkest conditions. The TNT-05 D80 also provide basic functions such as tripmeter, hour meter, fuel, voltage, clock, gear indicator and more. Specifications (R= Range U=Unit) Tachometer R: 0 ~ 9,000 RPM | U: 1000 RPM / 500 RPM Odometer R: 0 ~ 99,999 miles (km) U: 1 mile (km) Shift‑light warning R: 1,000 ~ 8,000 RPM U: 100 RPM Warning lights on ≥ value Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) U: MPH or km/h Max speed record R: 0 ~ 360 miles (km) Overspeeding warning R: 19 ~ 225 MPH (30 ~ 360 km/h) U: MPH or km/h, Warning lights on ≥ value Tripmeter A/B R: 0 ~ 9999.9 miles (km) U: 0.1 mile (km) Tire circumference R: 300 ~ 2,500 mm U: 1 mm Sensitive point: 1 ~ 20 Over temperature warning R: 14 ~ 482°F (60 ~ 250°C) U: °F or °C (alternative) Motor oil maintenance R: User adjustable (500 ~ 16,000 km / 300 ~ 10,000 miles) ~ -999 km (miles), automaticly decrease according to the increase of total mileage. | U: 1 mile (km/h) Fuel meter R: 6 levels | Fuel light will flash if the level is below 1 Fuel resistance R: 100 Ω / 250 Ω / 270 Ω / 390 Ω /510 Ω / 1,200 Ω / Sw / Custom (learning mode) / OFF Under voltage warning R: DC 8 ~ 13 V | Flashing Warning light ≤ value. Backlight brightness R: 1/3 (darkest) ~ 3/3 (brightest) Backlight colors White / Yellow / Orange / Red / Purple / Blue / Light blue / Green Indicator lights RPM shift light / Check engine / Oil level / High beam / Turn signals / Water temp light / Warning light / Neutral Gear indicator R: 1 ~ 9 Effective temperature range 32 ~ 482 °F (0 ~ 250 °C) Volt meter R: DC 8 ~ 18 V / DC 0.1 V Clock 12 H or 24 H format Instructions Download PDF
