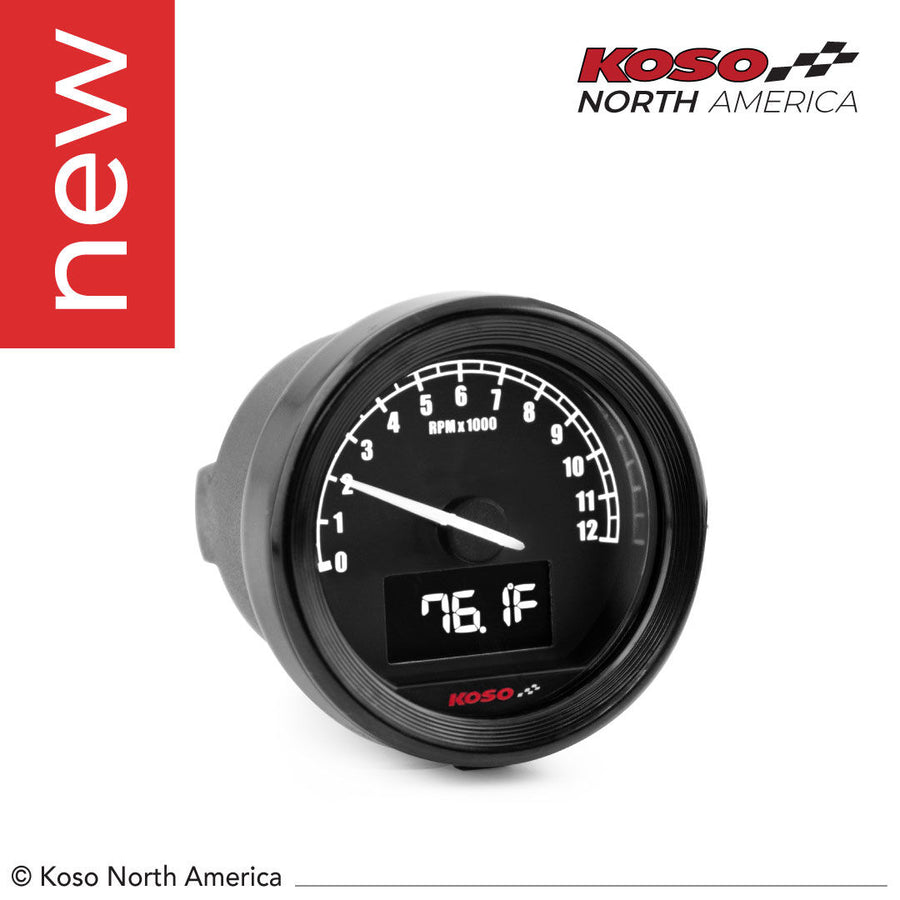

Koso TNT-05R D48 TACHOMETER
Koso TNT-05R D48 TACHOMETER by Koso.
Whether it is day or night, this small-scaled TNT-05 tachometer will prevent your engine from being damaged with its warning function for temperature and voltage. You can also give different looks to your motorcycle with its 7 changeable LCD display backlight colors. Specifications (R= Range U=Unit) Tachometer R: 0 ~ 12,000 RPM U: 1,000 (Large grid), 500 RPM (small grid) Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C) Effective voltage DC 12 V Indicator lights Over-running light (red) Backlight colors White / Yellow / Red / Purple / Blue / Light blue / Green Volt meter R: DC 8 ~ 18 V | Flashing Warning light ≤ value. Max temperature record R: 32 ~ 482 °F (0 ~ 250 °C)| U: 0,1 °F (°C) Return to zero manually Low voltage warning R: 3 ~ 18 V | Flashing Warning light ≤ value. Pre-Shift light warning R: 1,000 ~ 11,00 RPM, when setting value is reached or above, warning light will illuminate U: 100 RPM RPM input pulse R: HI-ACT (positive wave pulse) / LO-ACT (negative wave pulse) RPM input signal number setting R: P - 0.5, 1 ~ 6 Max. rotating speed R: 0 ~ 12,000 RPM (km) U: 1,000 (Large grid), 500 RPM (small grid) RPM Shift-light R: +100 ~ 12,000 RPM U: 100 RPM, warning light on > value Thermometer R: 32 ~ 482 °F (0 ~ 250 °C) U: 0.1 °F or °C (alternative) Over temperature warning R: 140 ~ 482°F (60 ~ 250°C) U: 1°F (°C) Instructions Download PDF
