Koso TNT-05S D48 SPEEDOMETER HARLEY-DAVIDSON
Koso TNT-05S D48 SPEEDOMETER HARLEY-DAVIDSON by Koso.

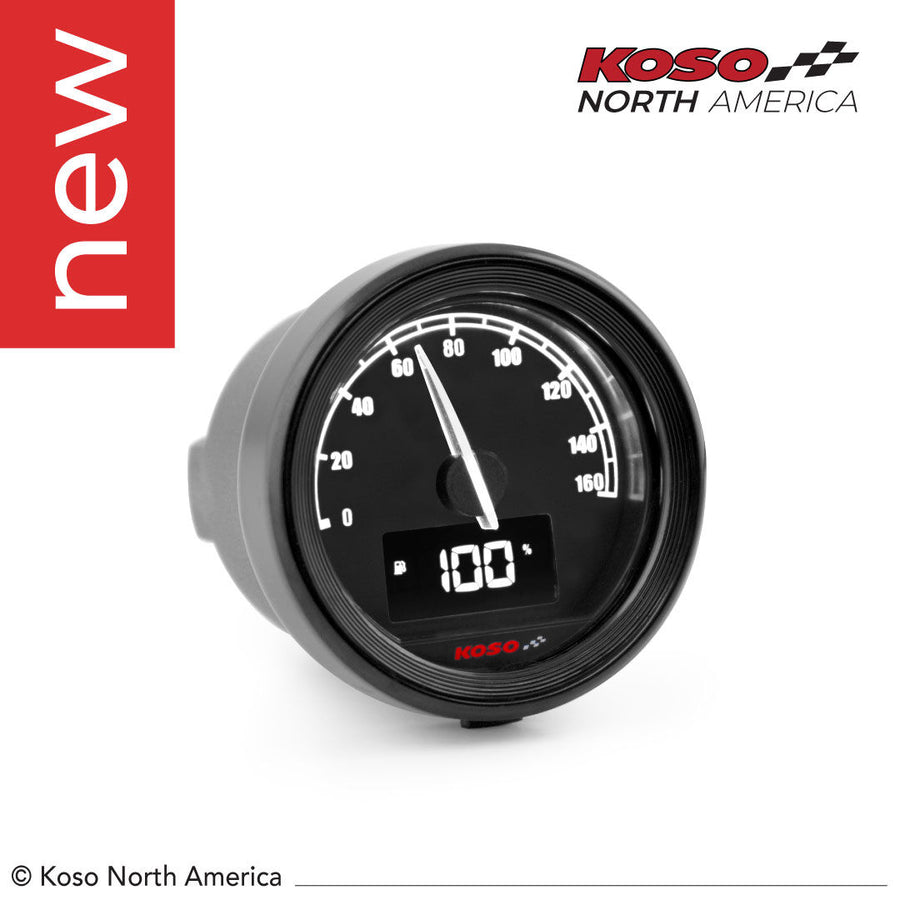

This smaller version of the TNT-05 speedometer can fit various locations and models while providing basic functions such as speed, odometer, tripmeter, fuel and voltage.Its compact LCD display is very easy to read even in the darkest conditions. It is equipped with all the necessary indicator lights and features 7 changeable display colors to fit your style. Specifications (R= Range U=Unit) Speedometer R: 0 ~ 160 km/h (MPH) U: 20 km/h (MPH) (Large grid), 10 km/h (MPH) (small grid) Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C) Effective voltage DC 12 V Indicator lights Over-running light Fuel meter R: 10 levels | U: 1 level = 10 % Low fuel warning R: 10 ~ 30 % | U: 10 % | Flashing Warning light ≤ value. Fuel resistance R: 100 Ω / 250 Ω / 270 Ω / 390 Ω /510 Ω / 1,200 Ω / Sw / Custom (learning mode) / OFF Backlight colors White / Yellow / Red / Purple / Blue / Light blue / Green Overspeeding warning R: 19 ~ 100 MPH (30 ~ 160 km/h) U: MPH or km/h, can return to zero manually Odometer R: 0 ~ 99,999 miles (km) U: 1 mile (km) Tripmeter A/B R: 0 ~ 9,999.9 miles (km) U: 0.1 mile (km) Tire circumference R: 300 ~ 2,500 mm U: 1 mm Sensitive point: 1 ~ 20 Thermometer R: 32 ~ 482 °F (0 ~ 250 °C) U: 0.1 °F or °C (alternative) Volt meter R: DC 8 ~ 13 V | Flashing Warning light ≤ value. Instructions Download PDF
