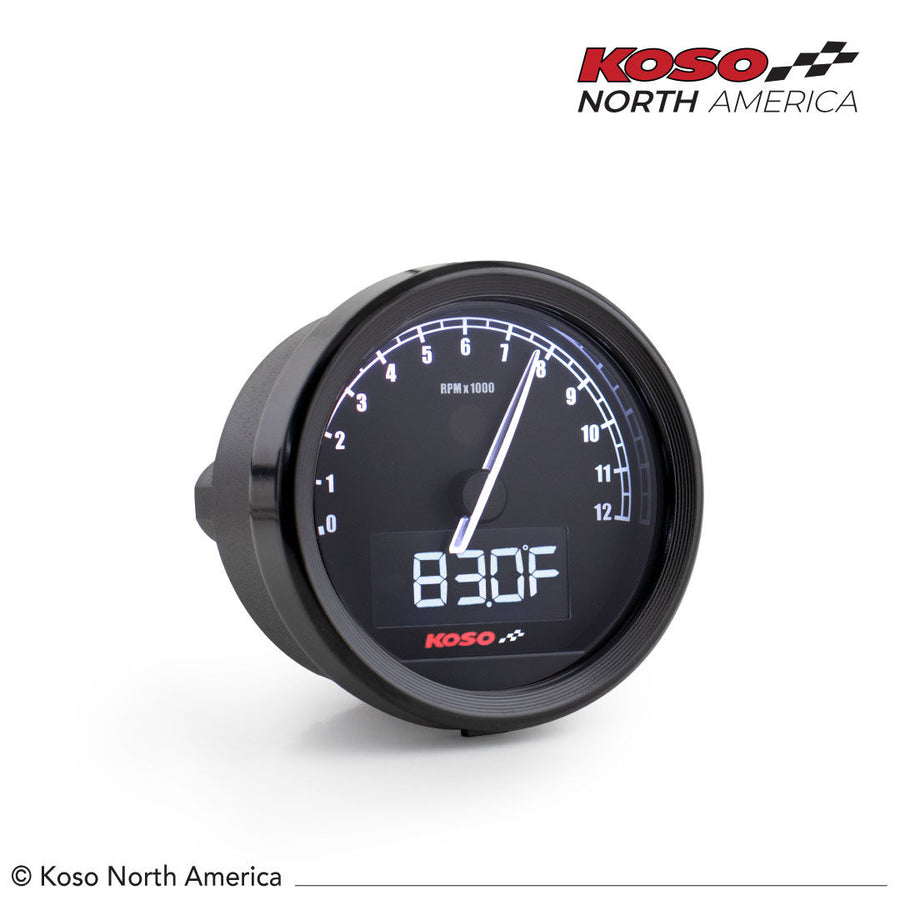

Koso TNT-05R D60 TACHOMETER
Koso TNT-05R D60 TACHOMETER by Koso.
Customize your bike with The TNT‑05R. This tachometer will give a modern look to any motorcycles with its changeable LCD display backlight colors and make it easy to read either it is day or night. Its warning function for temperature and voltage will protect your engine from being damaged. Specifications (R= Range U=Unit) Tachometer R: 0 ~ 12,000 RPM U: 1,000 (Large grid), 500 RPM (small grid) Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C) Effective voltage DC 12 V Indicator lights Over-running light (red) Backlight colors White / Yellow / Orange / Red / Purple / Blue / Light blue / Green Volt meter R: DC 8 ~ 18 V | Flashing Warning light ≤ value. Backlight brightness R: 1/3 (darkest) ~ 3/3 (brightest) Pre-Shift light warning R: 1,000 ~ 11,00 RPM, when setting value is reached or above, warning light will illuminate U: 100 RPM RPM input pulse R: HI-ACT (positive wave pulse) / LO-ACT (negative wave pulse) Max. rotating speed R: 0 ~ 12,000 RPM (km) U: 1,000 (Large grid), 500 RPM (small grid) RPM Shift-light R: +100 ~ 12,000 RPM U: 100 RPM, warning light on > value Thermometer R: 32 ~ 482 °F (0 ~ 250 °C) U: 0.1 °F or °C (alternative) Over temperature warning R: 140 ~ 482°F (60 ~ 250°C) U: 1°F (°C) Instructions Download PDF
