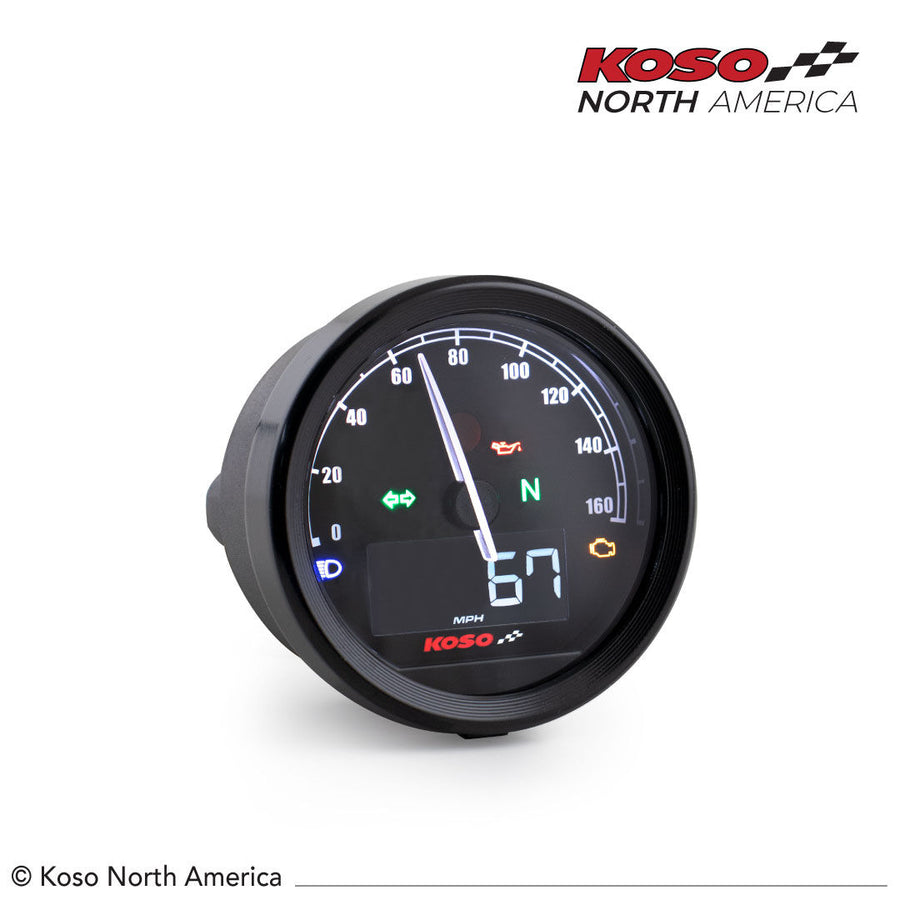

Koso TNT-05 D60 SPEEDOMETER - HARLEY DAVIDSON VERSION
Koso TNT-05 D60 SPEEDOMETER - HARLEY DAVIDSON VERSION by Koso.
Providing basic functions such as speed, odometer, tripmeter, hour meter, fuel, voltage, clock and stopwatch, the TNT-05S speedometer is equipped with 8 changeable LCD display colors that also includes all the necessary indicator lights to give you all the data you need. The illuminated backlight makes the instrument very easy to read even in the darkest conditions. Specifications (R= Range U=Unit) Speedometer R: 0 ~ 160 km/h (MPH) U: 20 km/h (MPH) (Large grid), 10 km/h (MPH) (small grid) Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C) Effective voltage DC 12 V Indicator lights Composite warning light / Speeding warning light / Neutral / High beam / Turn signals / Check engine / Motor oil light Fuel meter R: 10 levels | U: 1 level = 10 % Fuel resistance R: 100 Ω / 250 Ω / 270 Ω / 390 Ω /510 Ω / 1,200 Ω / Sw / Custom (learning mode) / OFF Clock 12 H or 24 H format Backlight colors White / Yellow / Orange / Red / Purple / Blue / Light blue / Green Overspeeding warning R: 19 ~ 100 MPH (30 ~ 160 km/h) U: MPH or km/h, can return to zero manually Odometer R: 0 ~ 99,999 miles (km) U: 1 mile (km) Tripmeter A/B R: 0 ~ 9,999.9 miles (km) U: 0.1 mile (km) Tire circumference R: 300 ~ 2,500 mm U: 1 mm Sensitive point: 1 ~ 20 Thermometer R: 32 ~ 482 °F (0 ~ 250 °C) U: 0.1 °F or °C (alternative) Over temperature warning R: 140 ~ 482°F (60 ~ 250°C) U: 1°F (°C) Volt meter R: DC 8 ~ 18 V | Flashing Warning light ≤ value. Backlight brightness R: 1/3 (darkest) ~ 3/3 (brightest) Instructions Download PDF
