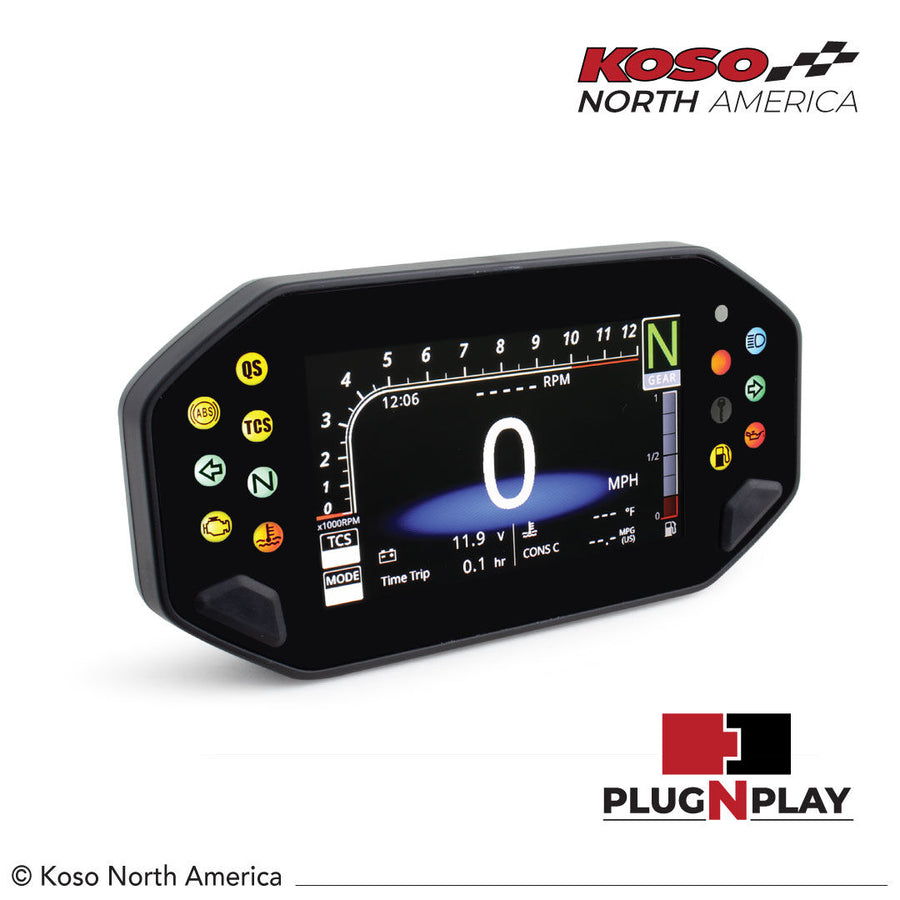

Koso RX-4S TFT METER FOR MT-07 (2021)

Koso RX-4S TFT METER FOR MT-07 (2021) by Koso.

The RX-4S is the new perfect meter for your Yamaha MT-07 with a plug and play function that makes it very easy to install. Featuring speed, odometer, tripmeter, hour meter, voltage, clock and stopwatch as well as 6 indicator lights, this upgraded version of the RX-4 meter will give you all the information you need. With its easy to use and large display functions, the RX-4S allows you to connect your phone through its Bluetooth option to see your incoming calls, your music information and much more. Fitment chart Specifications (R= Range U=Unit) Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h (alternative) Odometer (internal and external) R: 0 ~ 999,999 miles (km) | U: 1 mile (km) Tripmeter 1, 2 R: 0 ~ 9, 999.9 miles (km) U: 0.1 mile (km) Low fuel mileage R: 0 ~ 999miles (km) | U: 1 mile (km) Oil Mantenance R: 300~10,000 miles (500~16,000 km) ~ -999 km (mile) | U: 1 mile (km) • Value will decrease automatically • Warning range: Text will turn red as the value is 0 mile (km) and below. Oil Mantenance 1, 2 R: 300~10,000 miles (500~16,000 km) ~ -999 km (mile) | U: 1 mile (km) • Value will decrease automatically • Warning range: Text will turn red as the value is 0 mile (km) and below. Max. speed record R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h (alternative) Gear indicator R: N, 1 ~ 6 Max. gear indicator R: N, 1 ~ 6 Tachometer R: • 0 ~ 12,000 RPM Shift light D: Steady, Flash and Segment flashing R: • 1000 ~ 12,000 RPM U: • 500 RPM (Small grid) • 1,000 RPM (Large grid) , Max. RPM R: • 0 ~ 12,000 RPM Ambient air temperature R: 14 ~ 212 °F (‑10 ~ 100 °C)| U: 1 °F (°C) Ambient air temp. warning D: LO 212 °F (100 °C ; the numbers will turn red and blink Coolant temperature R: 32 ~ 482 °F (0 ~ 250 °C) | U: 1 °F (°C Coolant temperature warning D: LO 234 °F (117 °C ; the numbers will turn red and blink Max. coolant temp. record R: 32 ~ 482 °F (0 ~ 250 °C) | U: 1 °F (°C) Fuel meter R: 6 levels | U: 1 level = 16.6 % Low fuel warning R: Fuel level ≤ 1 segment the warning signal will blink. Current fuel consumption R: 0 ~ 99.9 MPG (2.5 ~ 99.9 L/100 km) U: 0.1 MPG (0.1 l/100 km) Average fuel consumption R: 0 ~ 99.9 MPG (2.5 ~ 99.9 L/100 km) U: 0.1 MPG (0.1 L/100 km) Clock R: 12 H or 24 H format Riding time R: 0 ~ 999.9 H | U: 0.1 H Riding time 1, 2 R: 0 ~ 999.9 H | U: 0.1 H Volt meter R: DC 8.0 ~ 18.0 V | U: DC 0.1 V Low voltage warning R: DC 8.0 ~ 13.0 V | U: DC 0.1 V D: LO ≤ value, numbers will turn red and blink. High voltage warning R: DC 13.1 ~ 18.0 V | U: DC 0.1 V D: HI ≥ value, numbers will turn red and blink. Target speed R: 0 ~ 225 MPH (0 ~ 360 km/h) Target distance R: 1/32 ~ 30/32 mile (50 ~ 1,500 m) U: 1/32 mile (50 m) Top speed D: • Speed : 0 ~ 225 MPH (0 ~ 360 km/h) • Distance : 0 ~ 999 m (0~3,280 feet) • RPM: 0 ~ value at top speed • Time : 0 ~9 : 59”99 Bluetooth connection status R: Steady (connected), OFF (Unconnected) Operating system : • iOS : iOS 5.0 and above • Android : Android 9, Android 10 Phone battery R: 3 segments Incoming phone call D: • Name or number up to 12 letters • “ … ” displayedif > 12 letters • “ Unknown ” displayed when there is noname • iOS - shows either name or number ofthe incoming call • Android - shows number only Incoming online App call D: • Name up to 12 letters • “ … ” displayedif > 12 letters • “ Unknown ” displayed when there is no name App: LINE, WeChat, WhatsApp Operating system: ■ iOS : supported □ Android : not supported Music playing info D: Song 15 letters / “ … ” if > 15 letters Artist 18 letters / “ … ” if > 18 letters Total song time : 00:00 ~ 9:59:59 Operating system (for total time): iOS : supported Android : not supported Current playing time : 00:00 ~ 9:59:59 Operating system (for current time): iOS : supported Android : not supported Push info D: • Name 4 letters / “ … ” if > 15 letters • Content 17 letters / “ … ” if > 17 letters Operating system: iOS : supported Android : not supported Driving mode R: Standard, A, B TCS display R: 1, 2, Off ECO indicator R: display, no display Backlight color R: blue, green, orange, white Indicator lights ABS / Left turn signal / Check Engine / QS (Quick switch) / TCS (Traction control signal) / Neutral / Coolant temp warning / RPM shift light / IMMO anti-theft / Low fuel warning / High beam / Right turn signal / Motor oil (maintenance) / Effective temperature range -4 ~ 185 °F (‑20 ~ 85 °C) Storage temperature range -22 ~ 194 °F (‑30 ~ 90 °C) Operating Voltage DC 12V Instructions Download PDF
