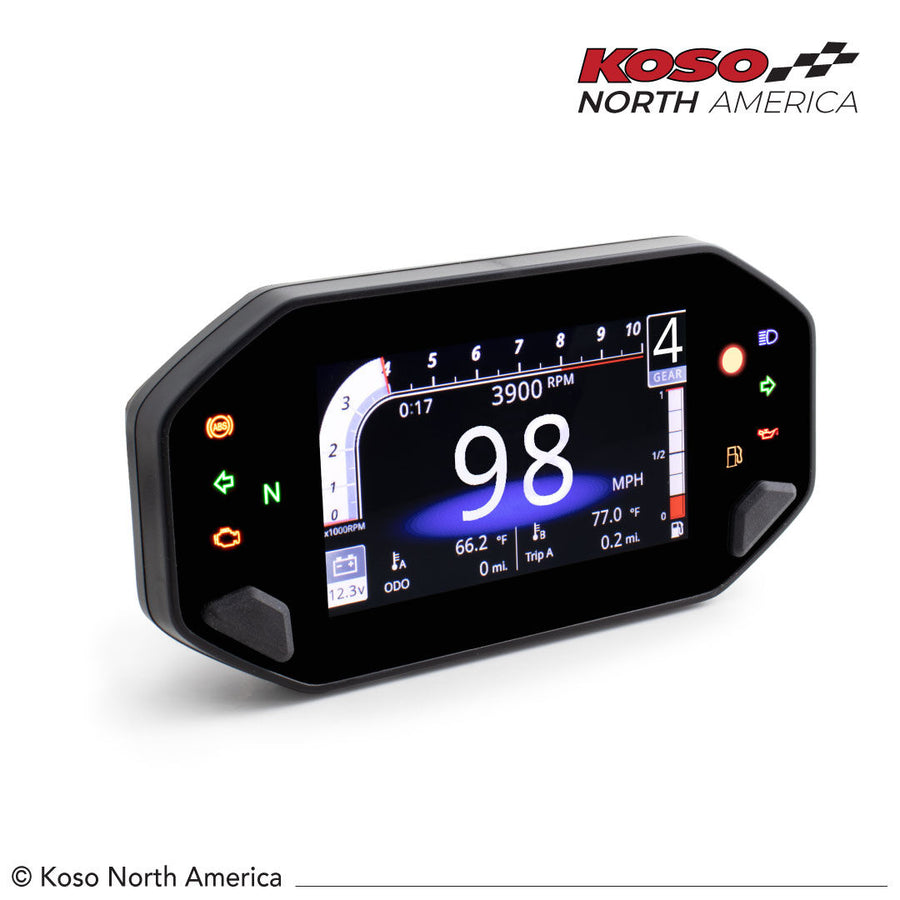

Koso RX-4 Universal multifunction TFT meter

Koso RX-4 Universal multifunction TFT meter by Koso.

Featuring speed, odometer, tripmeter, hour meter, voltage, clock and a stopwatch as well as several indicator lights, the new universal version of the RX-4 meter will give you all the information you need for your next trip. This multifunction meter allows you to connect your phone through its Bluetooth option for a unique experience like no other standard meter. You can see your incoming call, your music playing information and much more. With its easy to use and large display functions, the RX-4 is the perfect meter to give a modern look for any type of bikes. Specifications (R= Range U=Unit) Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h (alternative) Odometer (internal and external) R: 0 ~ 999,999 miles (km) | U: 1 mile (km) Tripmeter 1, 2 R: 0 ~ 9, 999.9 miles (km) U: 0.1 mile (km) Low fuel mileage R: 0 ~ 999miles (km) | U: 1 mile (km) Oil Mantenance R: 300~10,000 miles (500~16,000 km), OFF U: 100 mile (km) • Value will decrease automatically • Warning range: Text will turn red as the value is 0 mile (km) and below. Max. speed record R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h (alternative) Gear indicator R: N, 1 ~ 6 Max. gear indicator R: N, 1 ~ 6 Tachometer R: • 0 ~ 10,000 RPM • 0 ~ 12,500 RPM • 0 ~ 15,000 RPM • 0 ~ 18,000 RPM Shift light R: • 1000 ~ 10,000 RPM • 1000 ~ 12,500 RPM • 1000 ~ 15,000 RPM • 1000 ~ 18,000 RPM U: • 1 00 RPM Max. RPM R: • 0 ~ 10,000 RPM • 0 ~ 12,500 RPM • 0 ~ 15,000 RPM • 0 ~ 18,000 RPM Overheat warning A, B setting R:60 ~ 250 °C (140 ~ 482 °F), when setting value is reached , the color of the number turns to red and flashes. | U: 1 °C (°F) Max. temperature A, B record R: 0.0 ~ 250.0 ˚C (32.0 ~ 482.0 ˚F), may return to zero manually. | U: 0.1 ˚C (˚F) Fuel meter R: 6 levels | U: 1 level = 16.6 % Fuel warning setting R: 0 ~ 3/6, when setting value is reached or below, warning light will illuminate. U: 1 A/F ratio meter R: 12,1 ~ 17,5 | U: 0.1 Fuel gauge resistance (Ω) R: 100 Ω, 250 Ω, 270 Ω,390 Ω, 510 Ω, 1200 Ω, SW, learning mode,OFF Clock R: 12 H or 24 H format Volt meter R: DC 8.0 ~ 18.0 V | U: DC 0.1 V Low voltage warning R: DC 8.0 ~ 13.0 V | U: DC 0.1 V D: LO ≤ value, numbers will turn red and blink. High voltage warning R: DC 13.1 ~ 18.0 V | U: DC 0.1 V D: HI ≥ value, numbers will turn red and blink. Target speed R: 0 ~ 225 MPH (0 ~ 360 km/h) | U: 5 km/h (MPH) Target distance R: 1/32 ~ 30/32 mile (50 ~ 1,500 m) U: 1/32 mile (50 m) Top speed D: • Speed : 0 ~ 225 MPH (0 ~ 360 km/h) • Distance : 0 ~ 999 m (0~3,280 feet) • RPM: 0 ~ 10,000 RPM/ 0 ~ 12,500 RPM/ 0 ~ 15,000 RPM/ 0 ~ 18,000 RPM • Time : 0 ~9 : 59”99 Bluetooth connection status Operating system : • iOS : iOS 5.0 and above • Android : Android 9 and above Phone battery R: 3 segments Incoming phone call D: • Name or number up to 12 letters • “ … ” displayedif > 12 letters • “ Unknown ” displayed when there is noname • iOS - shows either name or number ofthe incoming call • Android - shows number only Incoming online App call D: • Name up to 12 letters • “ … ” displayedif > 12 letters • “ Unknown ” displayed when there is no name App: LINE, WeChat, WhatsApp Operating system: ■ iOS : supported □ Android : not supported Music playing info D: Song 15 letters / “ … ” if > 15 letters Artist 18 letters / “ … ” if > 18 letters Total song time : 00:00 ~ 9:59:59 Operating system (for total time): iOS : supported Android : not supported Current playing time : 00:00 ~ 9:59:59 Operating system (for current time): iOS : supported Android : not supported Push info D: • Name 4 letters / “ … ” if > 15 letters • Content 17 letters / “ … ” if > 17 letters Operating system: iOS : supported Android : not supported Background display R: Auto (automatically switch according to the light : Day mode display for a bright environment and Night mode display for a dark environment), Day mode, Night mode. Back light brightness (Day) R: 1/5(darkest) ~ 5/5(brightness) Back light brightness (night) R: 1/5(darkest) ~ 5/5(brightness) Backlight color R: blue, green, orange, white Indicator lights ABS / Left turn signal / Check Engine / Composite warning light/ Neutral / High beam / Right turn signal / Motor oil (maintenance) / Effective temperature range -4 ~ 185 °F (‑20 ~ 85 °C) Storage temperature range -22 ~ 194 °F (‑30 ~ 90 °C) Operating Voltage DC 12V Instructions Download PDF
