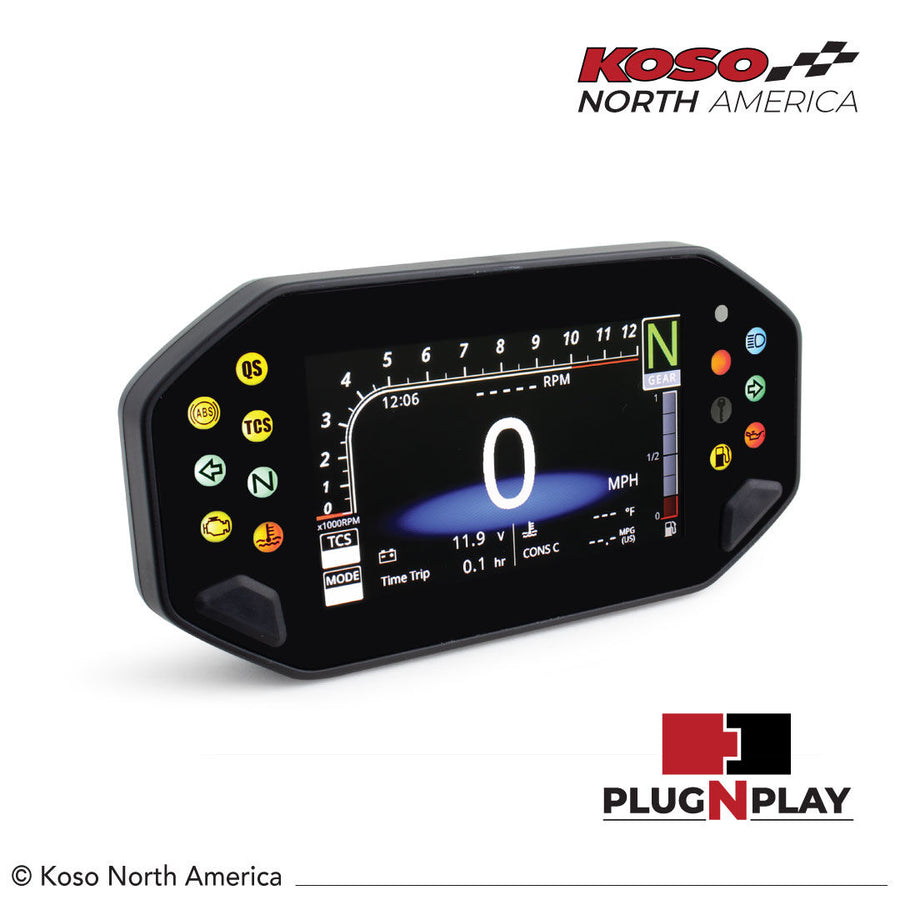

Koso RX-4 TFT METER FOR MT-09 (2017-2020)

Koso RX-4 TFT METER FOR MT-09 (2017-2020) by Koso.

This RX-4 is the perfect TFT multifunction meter for your Yamaha MT-09 (2017 to 2020) with a plug and play function that makes it very easy to install. Its easy to use and large display functions, the RX-4 allows you to connect your phone through its Bluetooth option to see your incoming calls, your music information and much more. Featuring speed, odometer, tripmeter, hour meter, voltage, clock and stopwatch as well as 6 indicator lights, this upgraded version of the RX-4 meter will give you all the information you need. Fitment chart Specifications (R= Range U=Unit) Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h (alternative) Odometer (internal and external) R: 0 ~ 999,999 miles (km) | U: 1 mile (km) Tripmeter 1, 2 R: 0 ~ 9, 999.9 miles (km) U: 0.1 mile (km) Low fuel mileage R: 0 ~ 999miles (km) | U: 1 mile (km) Oil Mantenance R: 300~10,000 miles (500~16,000 km) ~ -999 km (mile) | U: 1 mile (km) • Value will decrease automatically • Warning range: Text will turn red as the value is 0 mile (km) and below. Oil Mantenance 1, 2 R: 300~10,000 miles (500~16,000 km) ~ -999 km (mile) | U: 1 mile (km) • Value will decrease automatically • Warning range: Text will turn red as the value is 0 mile (km) and below. Max. speed record R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h (alternative) Gear indicator R: N, 1 ~ 6 Max. gear indicator R: N, 1 ~ 6 Tachometer R: • 0 ~ 13,000 RPM Shift light D: Steady, Flash and Segment flashing R: • 1000 ~ 13,000 RPM U: • 500 RPM (Small grid) • 1,000 RPM (Large grid) , Max. RPM R: • 0 ~ 13,000 RPM Coolant temperature R: 32 ~ 482 °F (0 ~ 250 °C) | U: 1 °F (°C Coolant temperature warning D: LO 234 °F (117 °C ; the numbers will turn red and blink Max. coolant temp. record R: 32 ~ 482 °F (0 ~ 250 °C) | U: 1 °F (°C) Fuel meter R: 6 levels | U: 1 level = 16.6 % Low fuel warning R: Fuel level ≤ 1 segment the warning signal will blink. Current fuel consumption R: 0 ~ 99.9 MPG (2.5 ~ 99.9 L/100 km) U: 0.1 MPG (0.1 l/100 km) Average fuel consumption R: 0 ~ 99.9 MPG (2.5 ~ 99.9 L/100 km) U: 0.1 MPG (0.1 L/100 km) Clock R: 12 H or 24 H format Riding time R: 0 ~ 999.9 H | U: 0.1 H Riding time 1, 2 R: 0 ~ 999.9 H | U: 0.1 H Volt meter R: DC 8.0 ~ 18.0 V | U: DC 0.1 V Low voltage warning R: DC 8.0 ~ 13.0 V | U: DC 0.1 V D: LO ≤ value, numbers will turn red and blink. High voltage warning R: DC 13.1 ~ 18.0 V | U: DC 0.1 V D: HI ≥ value, numbers will turn red and blink. Target speed R: 0 ~ 225 MPH (0 ~ 360 km/h) Target distance R: 1/32 ~ 30/32 mile (50 ~ 1,500 m) U: 1/32 mile (50 m) Top speed D: • Speed : 0 ~ 225 MPH (0 ~ 360 km/h) • Distance : 0 ~ 999 m (0~3,280 feet) • RPM: 0 ~ value at top speed • Time : 0 ~9 : 59”99 Bluetooth connection status R: Steady (connected), OFF (Unconnected) Operating system : • iOS : iOS 5.0 and above • Android : Android 9, Android 10 Phone battery R: 3 segments Incoming phone call D: • Name or number up to 12 letters • “ … ” displayedif > 12 letters • “ Unknown ” displayed when there is noname • iOS - shows either name or number ofthe incoming call • Android - shows number only Incoming online App call D: • Name up to 12 letters • “ … ” displayedif > 12 letters • “ Unknown ” displayed when there is no name App: LINE, WeChat, WhatsApp Operating system: ■ iOS : supported □ Android : not supported Music playing info D: Song 15 letters / “ … ” if > 15 letters Artist 18 letters / “ … ” if > 18 letters Total song time : 00:00 ~ 9:59:59 Operating system (for total time): iOS : supported Android : not supported Current playing time : 00:00 ~ 9:59:59 Operating system (for current time): iOS : supported Android : not supported Push info D: • Name 4 letters / “ … ” if > 15 letters • Content 17 letters / “ … ” if > 17 letters Operating system: iOS : supported Android : not supported Driving mode R: Standard, A, B TCS display R: 1, 2, Off ECO indicator R: display, no display Backlight color R: blue, green, orange, white Indicator lights ABS / Left turn signal / Check Engine / QS (Quick switch) / TCS (Traction control signal) / Neutral / Coolant temp warning / RPM shift light / IMMO anti-theft / Low fuel warning / High beam / Right turn signal / Motor oil (maintenance) / Effective temperature range -4 ~ 185 °F (‑20 ~ 85 °C) Storage temperature range -22 ~ 194 °F (‑30 ~ 90 °C) Operating Voltage DC 12V Instructions Download PDF
