Koso D2 + ENG. TEMP & FUEL LEVEL 2014-23 BAGGER
Koso D2 + ENG. TEMP & FUEL LEVEL 2014-23 BAGGER by Koso.

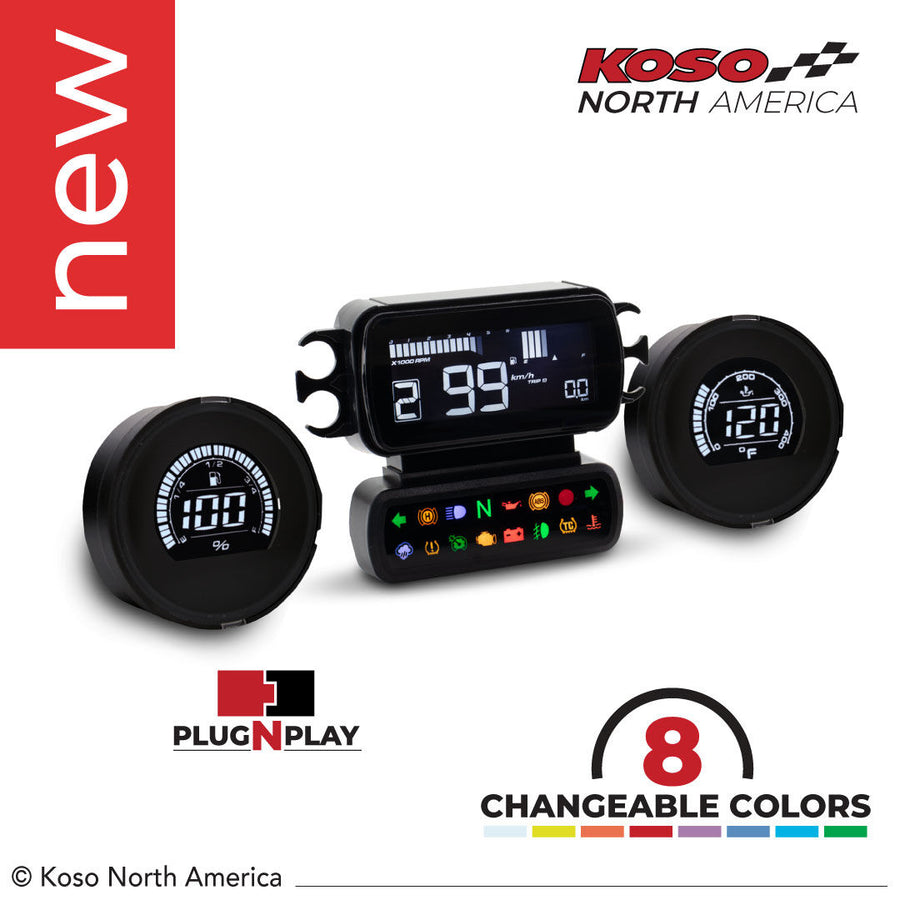

(for Baggers 2014-2023) This new plug and play D2 gauge kit for Baggers now comes with the fuel level & engine temperature meters, giving a unique look and experience to your motorcycle. It is also equipped with an 8-color changeable LCD display and features vital readings such as engine temperature, battery voltage, tire pressure, gear indicator and a complete system of indicator lights to monitor your bike’s vital signs. This gauge will fit directly into the stock harness and works with your bike’s CANBUS system. Fitment chart *To access settings on CVO models, you must turn ON the run/stop switch so that the bike will not turn off. Then you can make your adjustments to the settings on the gauge. **If you already own the D2 gauge for Baggers (BA080030), you can purchase the gauge kit part# BA080051 as an add-on to your gauge. (Includes fuel level, engine temp meter & adapter harness.) Optional accessories : Air pressure sensor kit for air suspension (part# BZ012000) 12'' extension wire (part# 20-A91803A) Rubber gasket (part# BZ080000) Specifications (R= Range U=Unit) Backlight color R: white, red, orange, yellow, blue, light blue, purple, green Engine temperature R: -38 ~ 572 °F (-39 ~ 300 °C) Backlight brightness R: 1/5 (darkest) ~ 5/5 (brightest) Fuel Meter R: 10 levels Operating voltage DC 12 V Operating temperature -20 ~ 85 °C Storage temperature -30 ~ 90 °C Specifications JIS D 0203 (S2) Instructions Download PDF
