Koso D2 LCD METER FOR HD 2014-2022
Koso D2 LCD METER FOR HD 2014-2022 by Koso.

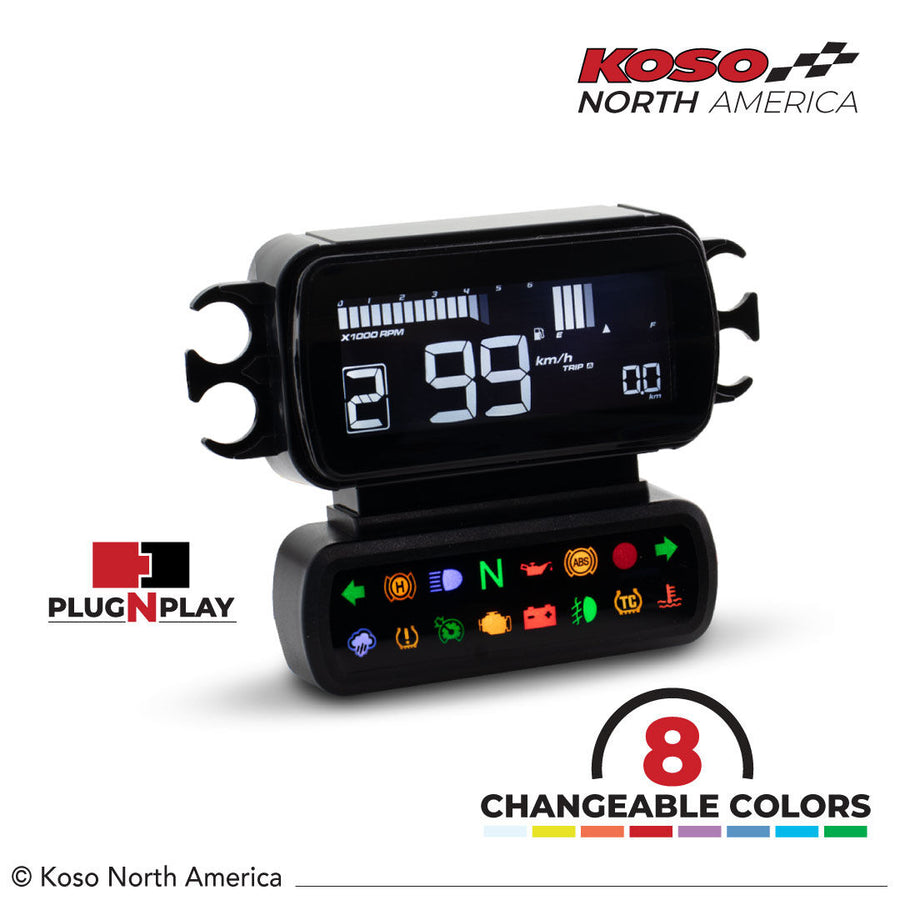

(for Baggers 2014-2023) Equipped with an 8-color changeable LCD display, the new plug and play D2 meter for Baggers features a tach and speedo combo with a programmable shift light and includes a gear indicator for easily seeing what gear you’re in. This gauge also features vital readings such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor your bike’s vital signs. This gauge will fit directly into the stock harness and works directly with your bike’s CANBUS system. Fitment chart *To access settings on CVO models, you must turn ON the run/stop switch so that the bike will not turn off. Then you can make your adjustments to the settings on the gauge. Optional accessories : Air pressure sensor kit for air suspension (part# BZ012000) 12'' extension wire (part# 20-A91803A) Rubber gasket (part# BZ080000) Specifications (R= Range U=Unit) Speedometer R: 0~199 km (0~124 mile) switchable U: 1 km (mile) Display interval <0,5 second Internal and external odometer R: 000,000 ~ 999,999 km (mile) returns to zero upon exceeding U: 0,1 km (mile) Trip meter A,B R: 0,000,0 ~ 9,999,9 km (mile) returns to zero upon exceeding U: 0,1 km (mile) Tire circumference R: 50 ~ 210 % U: 1 % Tachometer R: 0 ~ 10,000 RPM Backlight color R: white, red, orange, yellow, blue, light blue, purple, green Mileage maintenance R: Off, 500 ~ 16,000 km (300 ~ 10,000 mile) U: 100 km (miles) Indication light R: Turn signal / Water temp / Oil pressure / Photometric sensing / Warning light/ Check engine / High Beam / Fog light / Volt / Traction control / Cruise / ABS / Rain mode / Vehicle hold control / Fuel level / Low tire pressure / Security light Shift light warning R: 2,000 ~ 10,000 RPM When it is higher than the setting value (including), the backlight will blink in re and white as a warning U: 100 RPM Engine temperature R: -38 ~ 572 °F (-39 ~ 300 °C) Clock R: 12 / 24 hour format Voltmeter R: 8 ~ 18 V Backlight brightness R: 1/5 (darkest) ~ 5/5 (brightest) Meter weight Around 70g Tire pressure (TPMS, FR/RR/LR shall be displayed when the vehicle supports TPMS) R: ---, HI, 0 ~ 73 PSI, 0~506 kPa, 0,0~5,0 bar U: 1 PSI, 1 kPa, 0,1 bar Fuel Meter R: 10 levels Operating voltage DC 12 V Operating temperature -20 ~ 85 °C Storage temperature -30 ~ 90 °C Specifications JIS D 0203 (S2) Meter size 88,2 x 67,0 x 35,2 mm Instructions Download PDF
