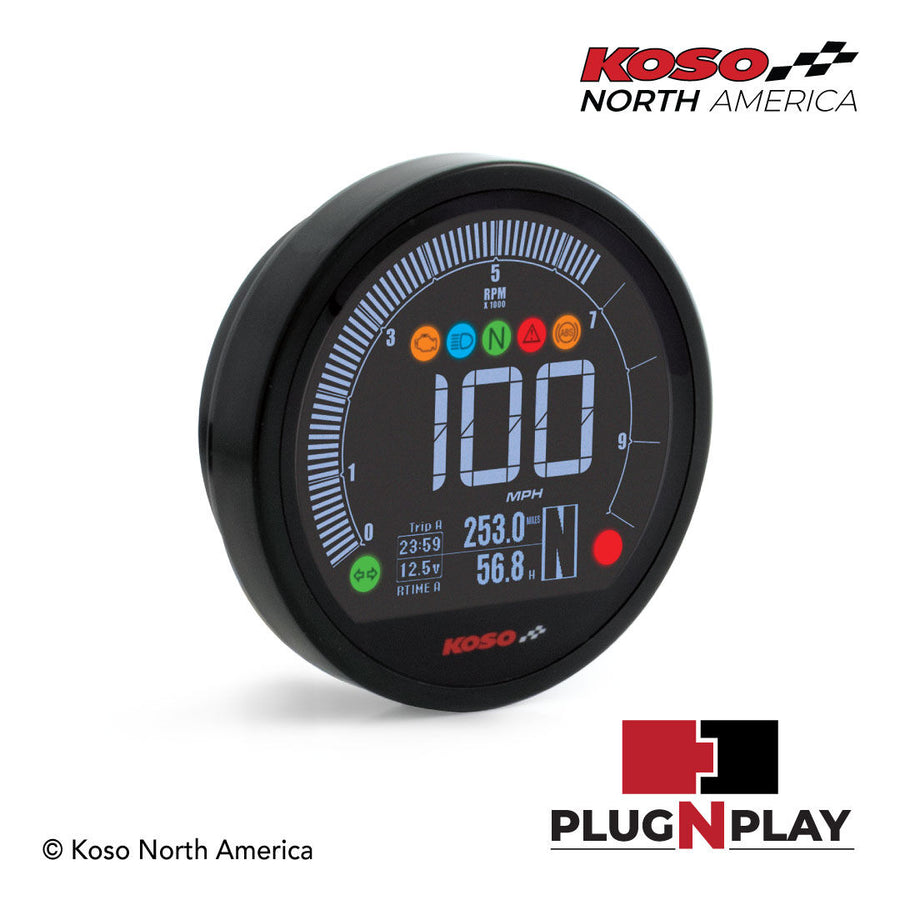

Koso DL-04B Meter for Yamaha Bolt
Koso DL-04B Meter for Yamaha Bolt by Koso.
With its classical round shape, Koso’s newest addition to the DL-04 series is the perfect plug and play speedometer for Yamaha Bolt ® . Its innovative negative LCD screen features a variety of functions such as a gear indicator, 6 indicator lights, tachometer, voltage, clock and much more. Optional relocation bracket kit: Part BE077000 Specifications (R= Range U=Unit) Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h (alternative) Tachometer R: 0 ~ 10,000 RPM Odometer (internal and external) R: 0 ~ 99,999 miles (km) | U: 1 mile (km) Tripmeter 1, 2 R: 0 ~ 9, 999.9 miles (km) U: 0.1 mile (km) Tripmeter A (Daily riding mileage) R: 0 ~ 9, 999.9 miles (km) U: 0.1 mile (km) Shift light warning R: 1,000~10,000 RPM U: 100 RPM Oil Maintenance R: 999~10,000 miles Tire percentage R: 50 ~ 200%|U: 1% Fuel meter R: ON, OFF, unusual warning Gear indicator R: N, 1 ~ 5 Volt meter R: DC 8.0 ~ 18.0 V | U: DC 0.1 V Operating voltage R: DC 12V Clock R: 12 or 24 H format Temperature R: -22 ~ 437 °F (‑30 ~ 225 °C) Backlight brightness R: 1 - 5(darkest) ~ 5 - 5 (brightest) Indicator lights Turn signals / Neutral / Check engine / Warning / High beam / ABS / Anti-theft light (Red) Overheat warning setting R: 60~225 (140~437), When exceeding the set warning value, the value flickers, and the warning signal will be lit according to the setting U: 1 C (F) Instructions Download PDF
