Koso TNT-04 SILVER BEZEL
Koso TNT-04 SILVER BEZEL by Koso.

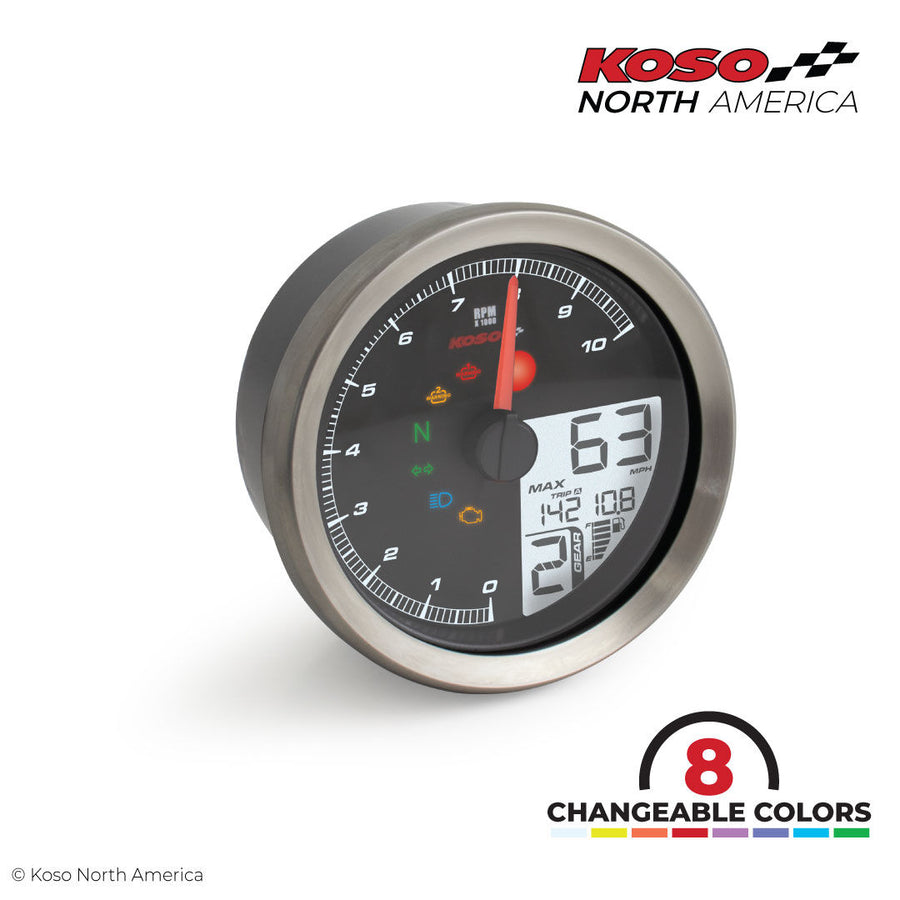

Our TNT‑04 multifunction meter is perfect for all special projects. It is equipped with a 8 color changeable LCD display and also uses a strong stepper motor that provides a precise and fast RPM reading so that you can get in‑time information. Some of the great functions this meter has to offer are : speed, RPM, indicator lights, fuel level, and gear position indicator. Available in silver or black bezel, this is a great addition to customize your ride. Specifications (R= Range U=Unit) Tachometer R: 0 ~ 10,000 RPM RPM signal R: P-0.5, P1 ~ P24 RPM input pulse R: HI‑ACT (positive wave pulse) LO‑ACT (negative wave pulse) Over RPM warning R: 1,000 ~ 10,000 RPM U: 100 RPM Warning sign given once ≥ value RPM Shift‑light R: 2,000 ~ 10,000 RPM U: 100 RPM Warning lights on > value Maximum RPM mode R: Light on (F‑OFF), Flash (F‑ON) Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) U: MPH or km/h Overspeeding warning R: 19 ~ 225 MPH (30 ~ 360 km/h) U: MPH or km/h Warning lights on ≥ value Odometer R: 0 ~ 99,999 miles (km) U: 1 mile (km) Tripmeter A/B R: 0 ~ 999.9 miles (km) U: 0.1 mile (km) Tire circumference R: 300 ~ 2,500 mm U: 1 mm Sensitive point: 1 ~ 20 Thermometer R: 32 ~ 482 °F (0 ~ 250 °C) U: 0.1 °F or °C (alternative) Over temperature warning R: 140 ~ 482°F (60 ~ 250°C) U: 1°F (°C) Fuel meter R: 6 levels | U: 1 level = 16.6 % Fuel resistance R: 100 Ω / 250 Ω / 270 Ω / 510 Ω / 1,200 Ω / Fuel switch / USER Clock 12 H or 24 H format Volt meter R: DC 8 ~ 18 V | Flashing Warning light ≤ value. Backlight brightness R: 1/5 (darkest) ~ 5/5 (brightest) Backlight colors White / light Blue / Blue / Purple / Red / Orange / Yellow / Green Indicator lights Warning 1 / Warning 2 / Neutral / High beam / Turn signals / Check engine / RPM shift light Gear indicator Off, Highest gear, N & Highest gear, Show all, N, 1, 2, 3, 4, 5, 6 Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C) Effective voltage DC 12 V Instructions Download PDF
