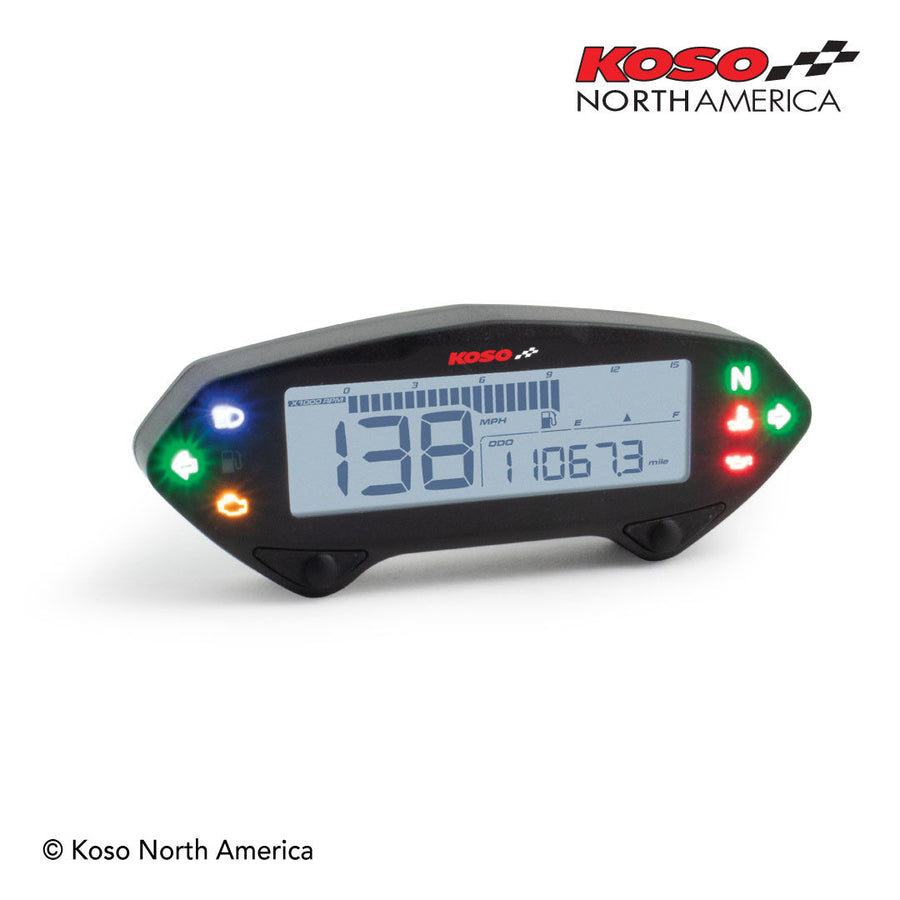

Koso DB-01RN MULTI-FUNCTIONS METER
Koso DB-01RN MULTI-FUNCTIONS METER by Koso.
The DB‑01RN multifunction meter is a true complete meter. Designed to look great on any type of bike, its large display and easy to use functions make this meter very simple to use while at the same time providing you with a unique stand out look that all riders look for. Specifications (R= Range U=Unit) Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) Will blink when exceed range U: 1 MPH or km/h (alternative) Internal odometer R: 0 ~ 99,999 miles (km) | U: 1 mile (km) Not user adjustable External odometer R: 0 ~ 99,999 miles (km) | U: 1 mile (km) Tripmeter A/B R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km) Oil maintenance mileage U: 1 mile (km) R: 300 ~ 5,000 miles (500 ~ 8,000 km) Up to -999 miles (-999km) when exceeds 0. Speeding warning light R: 20 ~ 110 MPH (30 ~ 180 km/h) U: 5 MPH (km/h) Top speed record R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH(km) Average speed record R: 0 ~ 225 MPH (0 ~ 360 km/h) Tire circumference R: 300 ~ 2,500 mm | U: 1 mm Sensitive point: 1 ~ 20 Tachometer R: 0~15,000 RPM | U: 10 RPM Level tachometer R: 0 ~ 10,000 RPM | U: 333 RPM R: 0 ~ 12,000 RPM | U: 400 RPM R: 0 ~ 15,000 RPM | U: 500 RPM Maximum RPM record R: 0 ~ 15,000 RPM RPM input signal number R: P-0.5, P-1 ~P-25 RPM input pulse R: HI‑ACT (positive wave pulse) LO‑ACT (negative wave pulse) Total hour meter R: 0 ~ 99,999,9 hours | U: 0.1 hour Hour meter A/B R: 0 ~ 9,999,9 hours Staged fuel level R: 10 levels | Flashing light when lower then setting value Digital fuel meter R: 0 ~ 100 % Low fuel warning R: 10 ~ 50% | U: 10% Flashing light when lower then setting value Fuel resistance R: 100 Ω / 250 Ω / 270 Ω / 510 Ω / 1200 Ω / Switch / User Volt meter R: DC 8 ~ 16 V Clock R: 12 H or 24 H format (alternative) Indicator lights Neutral / High beam / Turn signals / Check engine / Oil level / Water temperature / Low fuel Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C) Effective voltage DC 12 V Instructions Download PDF
