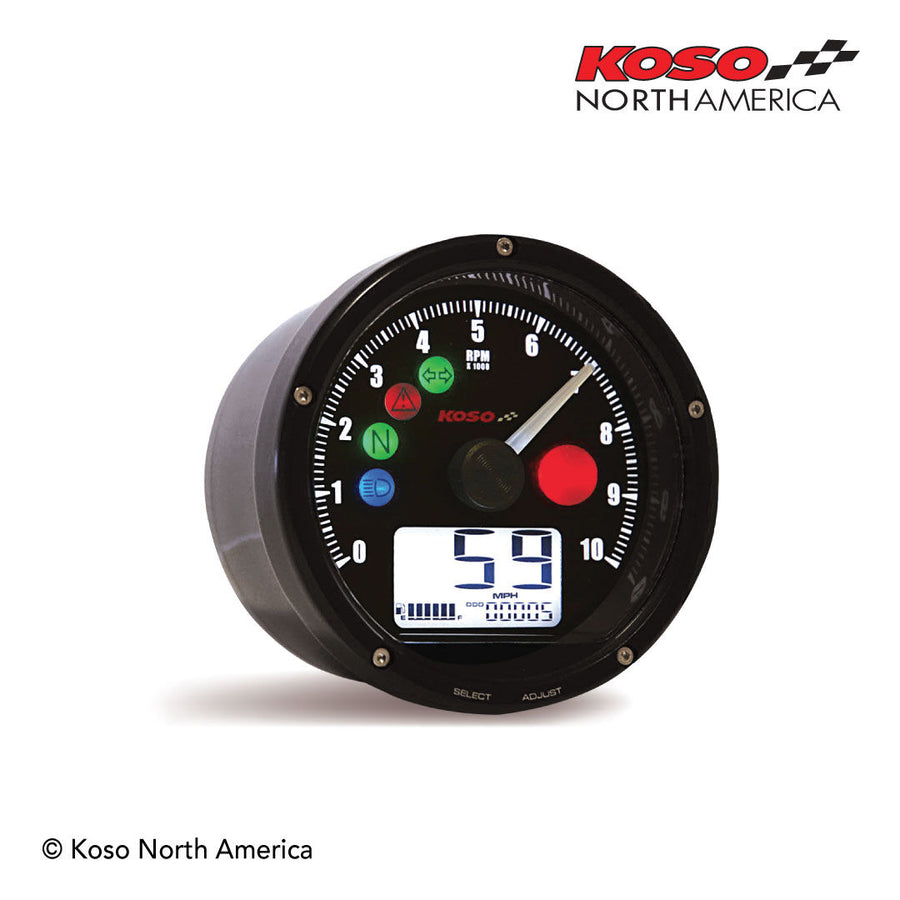

Koso TNT-01 MULTI-FUNCTIONS - BLACK CASING/BLACK FACE
Koso TNT-01 MULTI-FUNCTIONS - BLACK CASING/BLACK FACE by Koso.
Our TNT‑01 multifunction meter is perfect for all the Café racers and special projects. The TNT‑01 meter uses a stepper motor for a fast and smooth response. The instrument features many functions such as, speed, odometer, tripmeter, RPM, fuel meter, clock, voltage, shift light, indicator lights and more… This meter is available in black or white face and includes the installation brackets and speed sensor. Specifications (R= Range U=Unit) Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) U: MPH or km/h Odometer R: 0 ~ 99,999 miles (km) U: 1 mile (km) Tripmeter A/B R: 0 ~ 999.9 miles (km) U: 0.1 mile (km) Tire circumference R: 300 ~ 2,500 mm | U: 1 mm Sensitive point: 1 ~ 20 Tachometer R: 0~10,000 RPM Shift‑light R: 8,000 ~ 10,000 RPM | U: 100 RPM Warning (shift light) R: Light on (F‑OFF), Flash (F‑ON) RPM input signal number R: 0.5, 1 ~ 24 RPM input pulse R: HI‑ACT (positive wave pulse) LO‑ACT (negative wave pulse) Fuel meter R: 6 levels | U: 1 level = 16.6 % Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C) Fuel resistance R: 100 Ω / 250 Ω / 510 Ω / 1,200 Ω / SW Clock R: 24 H format Volt meter R: DC 8 ~ 18 V | Flashing Warning light ( DC 15.5 V). Backlight brightness R: 1/5 (darkest) ~ 5/5 (brightest) Indicator lights Neutral / High beam / Turn signals / Check engine / Oil level / Temperature / Speeding / RPM shift light Effective voltage DC 12 V Sensor included Active speed sensor : BF019005 Instructions Download PDF
