Koso DB-01R+ MULTI-FUNCTIONS GAUGE
Koso DB-01R+ MULTI-FUNCTIONS GAUGE by Koso.

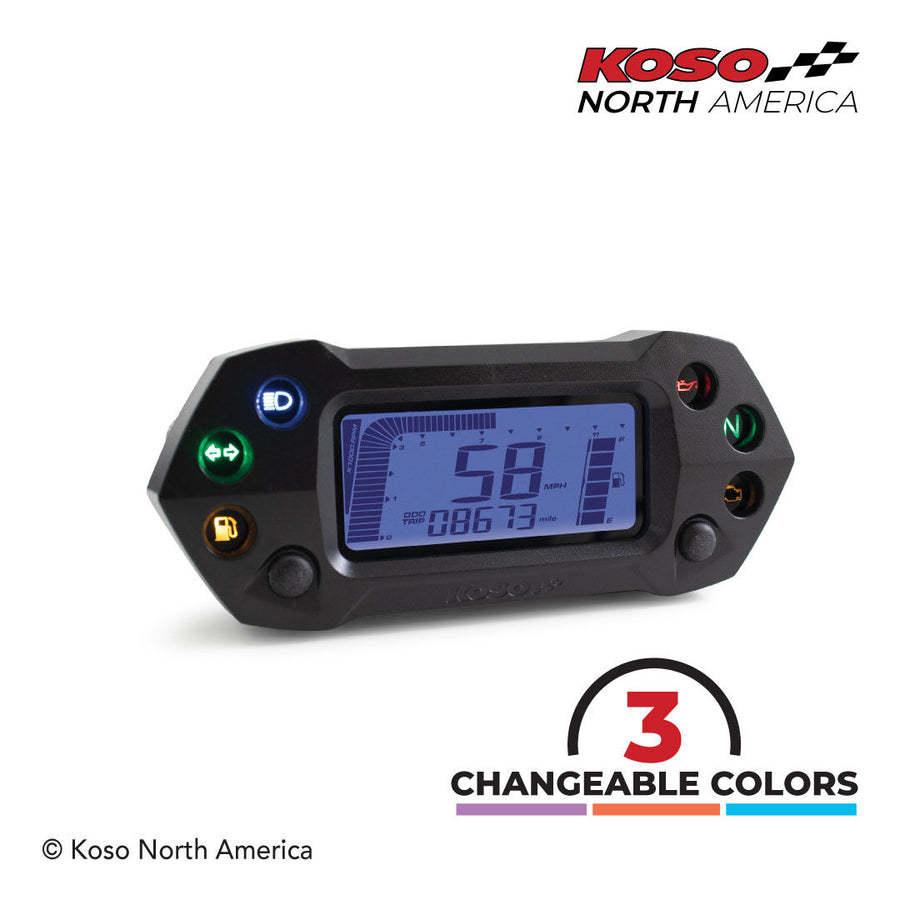

Our DB‑01R+ multifunction meter is an upgraded version of our popular DB‑01R multifunction meter. Perfect for motorcycles, street fighters or dual‑sports motorcycles, this meter features a large LCD display which uses a 3 different color changeable backlight to makes it easier to read during day or night riding. Get every information you need on this unique and lightweight meter that will enhance your motorcycle. Specifications (R= Range U=Unit) Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h (alternative) Odometer R: 0 ~ 99,999 miles (km) | U: 1 mile (km) Tripmeter A/B R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km) Tire circumference R: 300 ~ 2,500 mm | U: 1 mm Sensitive point: 1 ~ 20 Graph bar tachometer R: 10,000 / 12,000 / 15,000 RPM U: 500 RPM RPM input pulse R: 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6 Fuel meter R: 10 levels | U: 1 level = 16.6 % Fuel resistance R: 100 Ω / 250 Ω / 510 Ω / 510 Ω / 1,200 Ω Low fuel warning R: 0.1 ~ 16.6% (flashing) | R: 0 (light on) Stroke / piston setting 2 stroke: 1, 2, 3, 4 pistons 4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons Indicator lights Neutral / High beam / Turn signals / Check engine / Oil level / Low fuel Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C) Effective voltage DC 12 V Sensor included Passive speed sensor : BF019J06 Meter size (W x L x H) 130mm x 54mm x 35mm Meter weight ±90g Instructions Download PDF
