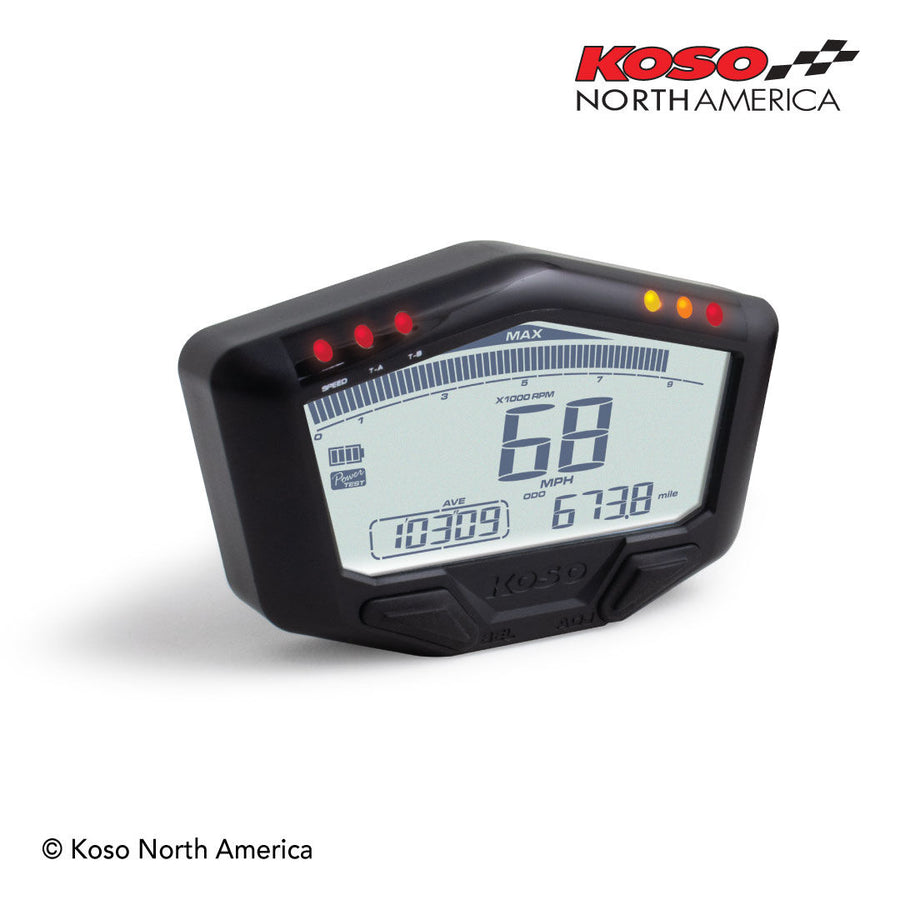

Koso DB-02 LCD METER - OFF ROAD VERSION
Koso DB-02 LCD METER - OFF ROAD VERSION by Koso.
This DB‑02 multifunction meter was especially made to fit your off‑road needs. Its small inner battery makes it usable on all dirt bikes and ATV’s that don’t have a DC 12 V battery. Its great shape and nice LCD display make it the perfect meter to get for your off‑road use. The changeable RPM scale allows this meter to fit on about any engine applications. This instrument also features a 3 stage shift light that allows you to shift your gears perfectly. Beside those great functions, the DB‑02 multifunction meter features : speed, odometer, tripmeter, RPM, inner battery level, temperature, hour meter, and more. Specifications (R= Range U=Unit) Speedometer R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h (alternative) Odometer R: 0 ~ 99,999 miles (km) | U: 1 mile (km) Tripmeter A/B R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km) Speeding warning light R: 20 ~ 225 MPH (30 ~ 360 km/h) Top speed record R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH(km) Average speed record R: 0 ~ 225 MPH (0 ~ 360 km/h) Tire circumference R: 300 ~ 2,500 mm | U: 1 mm Sensitive point: 1 ~ 6 Tachometer R: 0~20,000 RPM | U: 10 RPM Level tachometer 60 levels R: 0 ~ 10,000 RPM | U: 166 RPM R: 0 ~ 15,000 RPM | U: 250 RPM R: 0 ~ 25,000 RPM | U: 333 RPM RPM input signal number R: P-0.5, P-1 ~P-25 RPM shift light R: -5,000 ~ -20,000 RPM | U: 100 RPM Pre-shift light A/B R: 500 ~ 5,000 RPM before shift light U: 100 RPM Maximum RPM record R: 0 ~ 20,000 RPM RPM input pulse R: 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6 Hour meter R: 0 ~ 999,9 hours | U: 0.1 hour (6s) Thermometer A/B R: 32 ~ 482 °F (0 ~ 250 °C) U: 0.1 °F or °C (alternative) Over temperature warning A/B R: 140 ~ 482°F (60 ~ 250°C) | U: 1°F (°C) Top temperature record R: 32 ~ 482 °F (0 ~ 250 °C) Volt meter R: DC 8 ~ 16 V | U: DC 0.1 V Clock R: 24 H format Indicator lights Speeding / Temperature alarm (A/B) / RPM shift light A / RPM shift light B / RPM shift light. Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C) Effective voltage DC 12 V Battery type CR 2032 Battery lifetime ± 220 hours nonstop Sensor included Passive speed sensor: BF019J06 Temperature sensor: BF030000 Instructions Download PDF
