HIGHSIDER IOWA MAIN HEADLIGHT, BLK/CLR

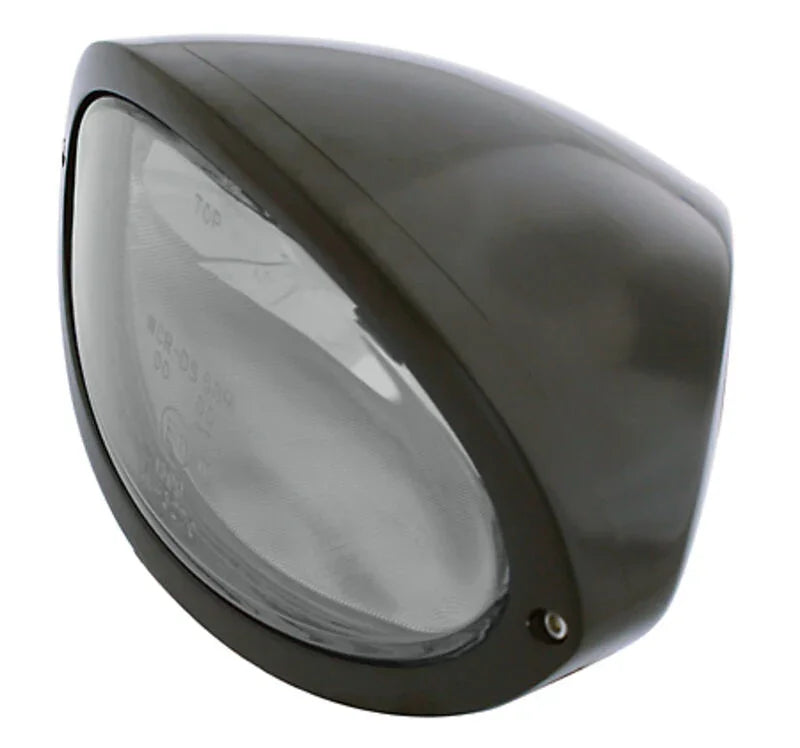

HIGHSIDER main headlight IOWA H4 halogen main headlight including parking light with clear or blue glass in a chrome or black oval metal housing for lower mounting. The reflector emits a bright, symmetrical light - for good road illumination and optimum visibility, E-approved.

See and be seen - give your bike unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight every time!

Technical specifications:

• Lamp: H4, 12 V 60/55W
• width: 175 mm
• Height: 102 mm
• Depth: 132 mm

Lamp ring fixing: lateral with M3 hexagon socket screws, M3 x 0.5 mm, length: 15 mm, (actual thread length: 12 mm), head diameter: 5 mm.

Lower fastening: M10

Connections:

• Black cable = ground (-)
• Yellow cable = low beam (+)
• Blue cable = high beam (+)

Parking light:

• Green cable = parking light (+)
• Black cable = ground (-)

Scope of delivery: 1 piece

Optionally available:

• Spare frame, chrome: 1107999
• Replacement insert, clear glass: item no. 1108640002
• Spare rubber gasket, self-adhesive: 1108000
