HIGHSIDER HANDLEBAR ADAPTERM M16 YA

HIGHSIDER M16 mounting kit for various Yamaha motorcycles

This special mounting kit makes it possible to mount the popular HIGHSIDER handlebar end weights, handlebar end mirrors or lever guards on the original handlebars of Yamaha motorcycles.

With a suitable slotted screwdriver, the M 16 x 1.5 threaded sleeves with M6 internal thread are screwed into the existing thread in the handlebar.
Now the HIGHSIDER handlebar accessories can be mounted with M6 central screw on the Yamaha handlebar.
In order to create a sufficiently large distance between the handle and the attachment part, the washers included in the set can be used if necessary.

Dimensions:
Adapter thread:
Outer: M16 x 1.5
Thread length: 17 mm

Adapter:
Total diameter: 20.9 mm
Length: 35 mm
Inner: M6

Washer:
Outer diameter: 19 mm
Inner diameter: 8.5 mm

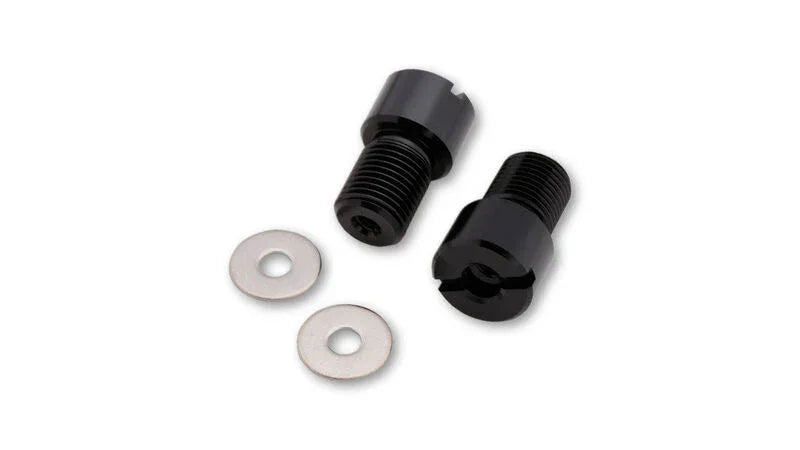

Scope of delivery:
2 x adapters
2 x washers
